Ultima frame chop build

Picked up an Ultima 250-series 38 degree single-downtube softail frame, and started collecting parts.

Frame is mocked up at 6 1/8" high, (same as my HD softail and a softail bobber I have). Yes I could lower it but I like my suspension at stock height, with some clearance.) Frame is level in the mockup, that is the tranny mounting plate is level relative to the floor.

Added an Ultima 6 speed tranny:

Its coming along slowly, I am in no real hurry. I ordered an inverted front end from Jeri's Springer, as soon as it comes in I will get it installed, take a pic or two and update progress on the mockup.
Thanks for looking.
ramcr913 is offline   Reply With Quote
Sponsored Links
Advertisement

Old 10-28-2012, 08:57 PM   #2 (permalink)
IronButt

Join Date: Dec 2008
Location: Texas
Posts: 105
ramcr913 wants to know Dino or Syn?
Ultima Frame Chop Build- October Update

Well I have made a little progress since August. I used a cheap Harbor Freight bender to make the rear hanger bracket for the fuel tank from a piece of flat bar:

Front brackets are pieces of angle I diced off a long piece. Located the brackets and welded them to them to the frame (BTW- I AINíT NO WELDER!!! So please donít bust me up too bad over the bad-lookin welds. I tested them with a BFH, they ainít pretty but theyíre holding):

Used 5/16" HD shock mounts on the tank:

Underside view of the tank mounted on the frame:

In the next pictures, I have the tank installed, a set of Chubby T-bars on, and a front end mocked up. The front end is an inverted springer, built by Jeri (Jeriís Springer in Clearwater, Fl.):



Oh, for you sharp-eyed springer guys- yes the rockers are upside down. Long story, they have since been replaced with a different set with the correct angle that levels the chassis and are now positioned correctly. I have an engine ordered; due in tomorrow. When I get it mocked in I will integrate the driveline and size it for a rear belt. I will post some more updates later.
ramcr913 is offline   Reply With Quote
Old 10-30-2012, 10:00 AM   #3 (permalink)
IronButt

grndpndr's Avatar

Join Date: Apr 2010
Location: e tenn
Posts: 333
grndpndr wants to know Dino or Syn?
Thats looking good!...
Can you post up a closer pick of the lower front fork? I have a set of prints for an inverted front springer that I was considering on my next build.

I had to make alot of the parts for my last build too. Its well worth the effort tho.
I had mine on the lift for 5 years gettin it the way I wanted it. Now I'm ready to start another one!

keep on keepin us posted!

edited to say:
I went with a belt final drive on my last build, I'm thinkin that the next one will be a chain.
I would like to find a redneck engineering curved bobber frame for a starting point.

Last edited by grndpndr; 10-30-2012 at 10:07 AM.
grndpndr is offline   Reply With Quote
Old 11-05-2012, 11:55 PM   #4 (permalink)
IronButt

Join Date: Dec 2008
Location: Texas
Posts: 105
ramcr913 wants to know Dino or Syn?

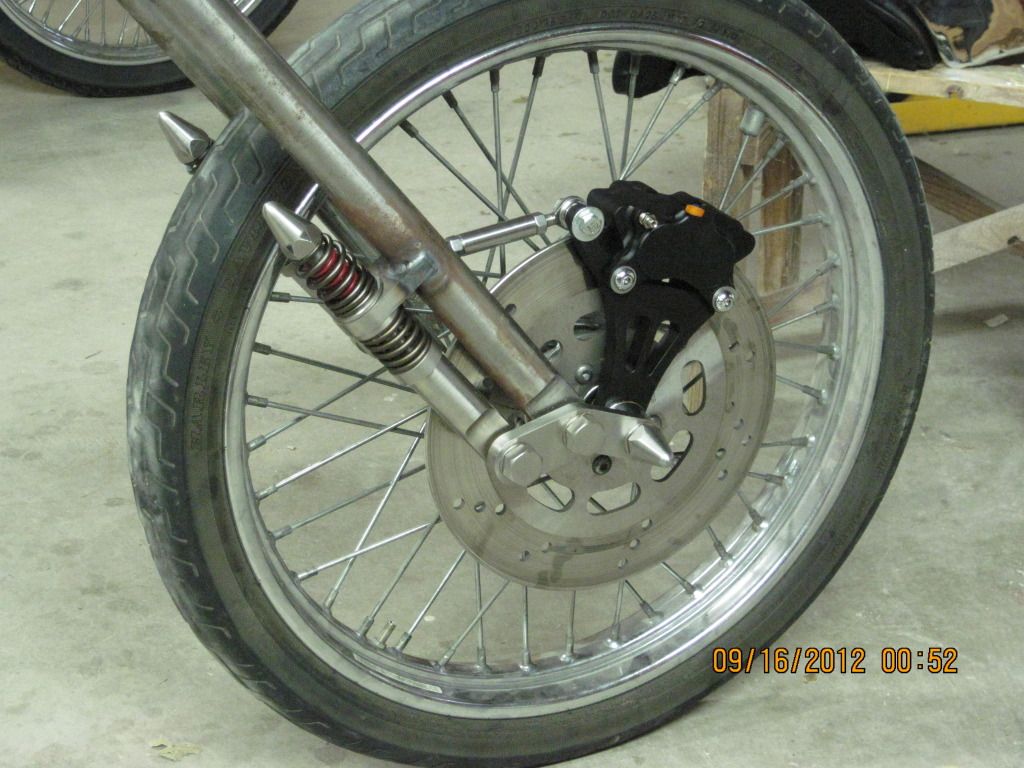

grndpndr- here's pic of the inverted springer lower end:

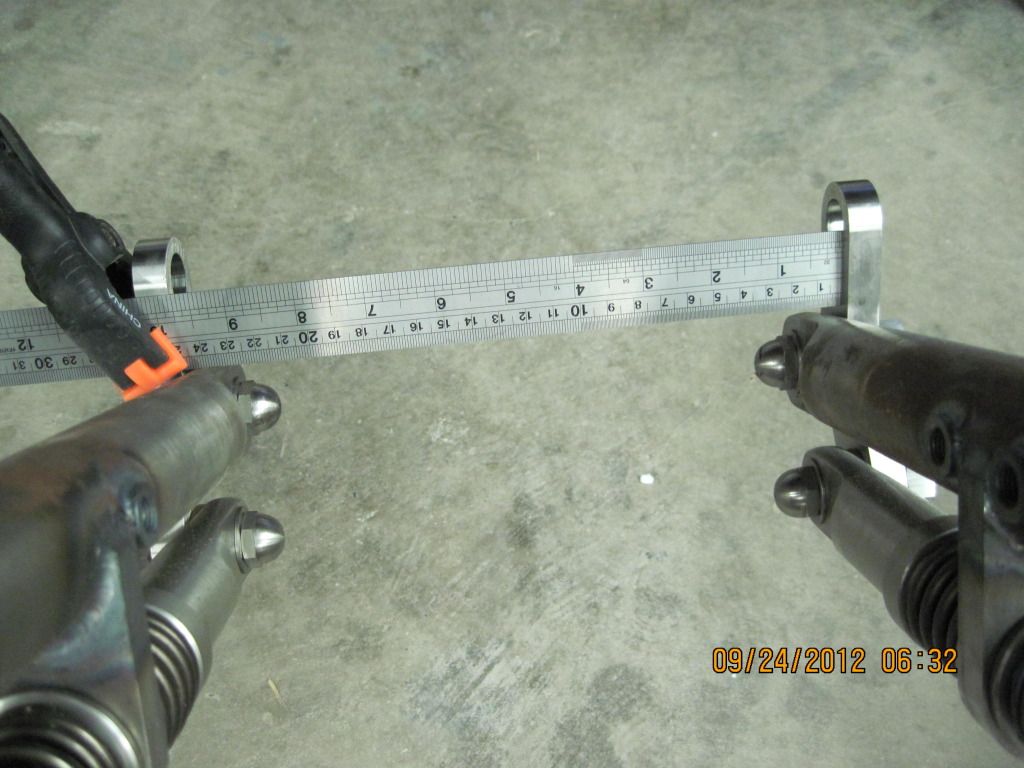

That is a DNA brake assembly. Here is a shot showing the rocker spacing. Note the 2 threaded bungs on the right fork. The lower one is for the brake anchor arm. The upper one is a 10mm brake line, stashed inside the tube. And yeah, this one is going to be belt driven as well.

This is a hi-lift, I added a couple of 3/4" pipes to make a fork lift to install the engine.

Worked pretty well, I rolled the chassis to the engine on a bike jack. Took only a few minutes, and the engine never touched the frame until I lowered it down on the frame mounts.
ramcr913 is offline   Reply With Quote
Old 11-06-2012, 05:29 PM   #5 (permalink)
IronButt

Rickstar321's Avatar

Join Date: Aug 2012
Location: Kennett MO
Posts: 109
Rickstar321 wants to know Dino or Syn?
Looking good! I bought my custom built already finished... makes me envious of you guys building your own!

... but I still love my bike :-D... and won't ever sell it... I may upgrade it... but never sell it!
__________________
Proud Parent of a U.S. Marine
  • 04 Custom built Stretched/Raked Daytec Frame, Stretched tank, Deuce front end, 21" Front tire, Evo 1340, S&S Shorty E, Supreme Legends Fwd Control, 2 1/2" Samson Pipes, Oil Cooler... (My Pretty Weekend Cruiser) + more!
    My Custom Thread
  • 04 Vstar 1100, lowered, Dragon's Breath pods, Cobra Dragsters, (Daily rider 90 mile round trip to work where it gets covered in slag dust!)
,
Rickstar321 is offline   Reply With Quote
Old 11-07-2012, 03:57 PM   #6 (permalink)
FNG :)

Join Date: Nov 2012
Location: Rocklin
Posts: 4
John916 wants to know Dino or Syn?
Ramcr913, I am looking at that same frame, currently I have the 200 Series Wide Softailģ style frame with radius fender struts, 38˚ rake, 8” stretch downtubes, 26” backbone but I am looking at going to the 250 series. Just curious, you are running a LSD transmission on there, and wondering if you have set the belt up yet to see what type of clearance you have on the rear wheel? I currently have an 111" S&S and 3.35 open primary, just wondering how big of an offset you have to run to get the proper clearance?
John916 is offline   Reply With Quote
Old 11-07-2012, 08:25 PM   #7 (permalink)
IronButt

Join Date: Dec 2008
Location: Texas
Posts: 105
ramcr913 wants to know Dino or Syn?
John
Yep, its a LSD transmission (3rd picture down from the start of this thread). No I haven't set up the rear belt yet although I will probably be doing that in the next couple of weeks. The 250 series frame requires a 1 1/4" motor-to-primary offset; the frame and swingarm *should* be ready to accept the driveline...
I am getting the primary drive lined up this weekend, as soon as I bolt the transmission down I will put a pulley on the wheel and see where we're at. Right now the wheel CL is inline with the frame CL, and the transmission is pretty close to where it needs to be. Hard to tell in the pic but just eyeing it up... looks like it is going to line up ok.

Guess I will find out soon though.
ramcr913 is offline   Reply With Quote
Old 11-07-2012, 11:20 PM   #8 (permalink)
FNG :)

Join Date: Nov 2012
Location: Rocklin
Posts: 4
John916 wants to know Dino or Syn?
Only one way to find out. My current set up was the 200 with an S@S 111", LSD transmission and 3.35 open primary. My rear drive belt always shaved about 1/8th of an inch off new tires. I knew something wasn't quite lined up right. I'm also considering the ultima 6speed with kicker and swapping out the pawl with a baker shifter pawl. Have read that it helps with the overall shifting of that ultima..

Last edited by John916; 11-08-2012 at 12:12 AM. Reason: Didn't pay attention to his previous description
John916 is offline   Reply With Quote
Old 11-08-2012, 07:20 AM   #9 (permalink)
merry old soul

Road King Cole's Avatar

Join Date: Sep 2010
Location: Middleboro MA
Posts: 3,457
Road King Cole is reading this now saying WTF is this? Road King Cole is reading this now saying WTF is this?
Quote:
Originally Posted by ramcr913 View Post
... started collecting parts.
So what engine did you just happen to collect that you dropped in there?

btw, very nice looking build you got going there and and excellent thread!

Thanks!!!!!

rkc
__________________
"enjoy every sandwich" - W Zevon
2001 FLHR (carb) w 95" 26g cam and a head job.
Road King Cole is offline   Reply With Quote
Old 11-08-2012, 08:03 AM   #10 (permalink)
FNG :)

Join Date: Nov 2012
Location: Rocklin
Posts: 4
John916 wants to know Dino or Syn?
Here is my original setup. Ultima 200 frame, 8" up 26" backbone, +10" forks... I liked it, but want something a little wider in the rear and to be honest, got sick of the paint. Time to overhaul it. Rode good though, took it from Nor-Cal to Sturgis and rode hard every day.. Yes that is a Corbin Gentry two up seat..what can I say the lady likes to ride with me.
Attached Thumbnails
Click image for larger version

Name:	image.jpg
Views:	164
Size:	259.8 KB
ID:	74708
John916 is offline   Reply With Quote
Old 11-08-2012, 10:25 PM   #11 (permalink)
IronButt

Join Date: Dec 2008
Location: Texas
Posts: 105
ramcr913 wants to know Dino or Syn?
Rickstar- good lookin bike you picked up. Nice stance, can't go wrong with evo-pattern motors, and I actually like the purple.

John- If you decide to go with an Ultima 250 frame, let me know. I have most of the offsets figured out now and will be able to help you out with the motor-to-primary spacer, motor pulley spacer, the rear axle spacers and location, and the rotor and pulley spacers if required. And yeah, on that 200 frame- if you have belts rubbing tires you have an alignment problem for sure. That frame should clear a 1 1/2" belt. Remember that a chain is an inch wide, so a 1 1/8" belt should clear easy. Regarding the Ultima 6-speed, I have never ran one but a few of my pards have been running them for a while with no shifting problems. I wouldn't plan for that Baker pawl assembly. Wait and see if you have an issue first.

Road King- the engine is a Ultima 120. Never tried on e before, we'll see if it works out. Glad you're enjoying the thread, I will try to keep it current. I should make a little progress this weekend- I need to get the drive train mocked up, add a tab for the seat, and come up with a regulator mount. No place for one on the single downtube, I may need to fab something up. Rear fender needs the mounting holes finalized too...I still have a ways to go before breaking everything down for paint prep.
ramcr913 is offline   Reply With Quote
Old 11-09-2012, 09:53 AM   #12 (permalink)
FNG :)

Join Date: Nov 2012
Location: Rocklin
Posts: 4
John916 wants to know Dino or Syn?
Careful what you offer! Before you know it I'll be asking for blueprints and schematics! Actually since I will be ordering that frame in about 2 weeks, I am sure I will take you up on that offer.

And yes, I ran a 1.5" rear drive belt and I know it was out of alignment. Part of my reason to rebuild it, at least that is my excuse to get a new frame, wider rear tire, new wheels and a new paint job...

Hard to tell in the picture, but what primary are you running? Like I mentioned I am running the Ultima open primary 3.35, curious how the spacer works on that thing.
John916 is offline   Reply With Quote
Old 11-10-2012, 06:12 PM   #13 (permalink)
IronButt

Join Date: Dec 2008
Location: Texas
Posts: 105
ramcr913 wants to know Dino or Syn?

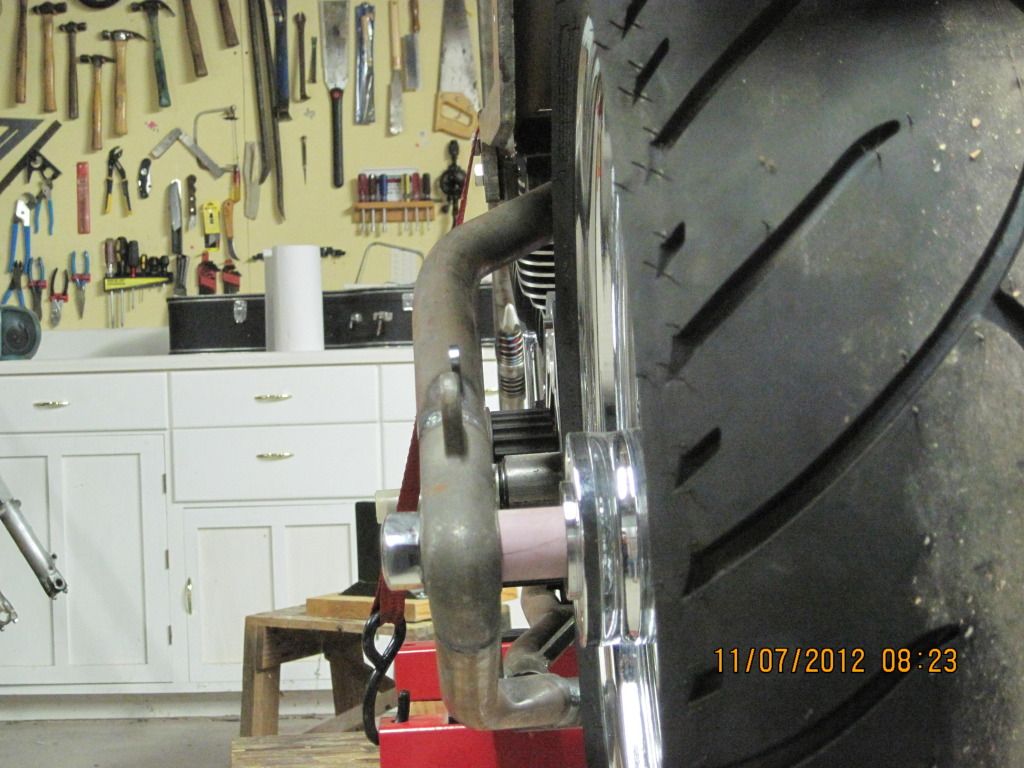

Well the motor and tranny didnít want to line up when I started mocking up the driveline. When I set the motor and transmission in place I never tightened down the mounting bolts, just snugged them up so I could line them up with the motor plate (or inner primary if running a closed primary drive). Then I noticed that the motor rocked a bit on the rear mount- hereís the problem. Look close at the weld that holds the rear motor mount to the seat post. The weld kind of spills over on the motor mount flat:

So I had to pull the engine. Hereís a shot of the hi-lift with the motor lift-arms in place:

And here is a picture of the chassis on a lift, you can see how the motor lift and rolling jack under the chassis work to make engine removal/installation a easy one-man operation:

I will now grind that weld down a bit, reinstall the engine and see where things are at.
ramcr913 is offline   Reply With Quote
